HT12G Mini Excavator with Kubota

Name: HT12G Mini Excavator with Kubota
Brand: Shandong Hightop Group
SKU: HT12G
Availability: InStock

Place of Origin	China
Hàng hiệu	Hightop
Chứng nhận	CE，EPA，ISO，TUV
Model Number	HT12G

Chi tiết sản phẩm

Model:

HT12G

Engine:

Z482 Kubota Z482

Work quality:

900kg

Bucket capacity:

0.02m³

Làm nổi bật:

Kubota Z482 Engine Mini Excavator

930mm Width Compact Excavator

Full Hydraulic Control Mini Digger

Điều khoản thanh toán & vận chuyển

Packaging Details

Wooden case

Delivery Time

5-14 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Supply Ability

100 set per month

Mô tả sản phẩm

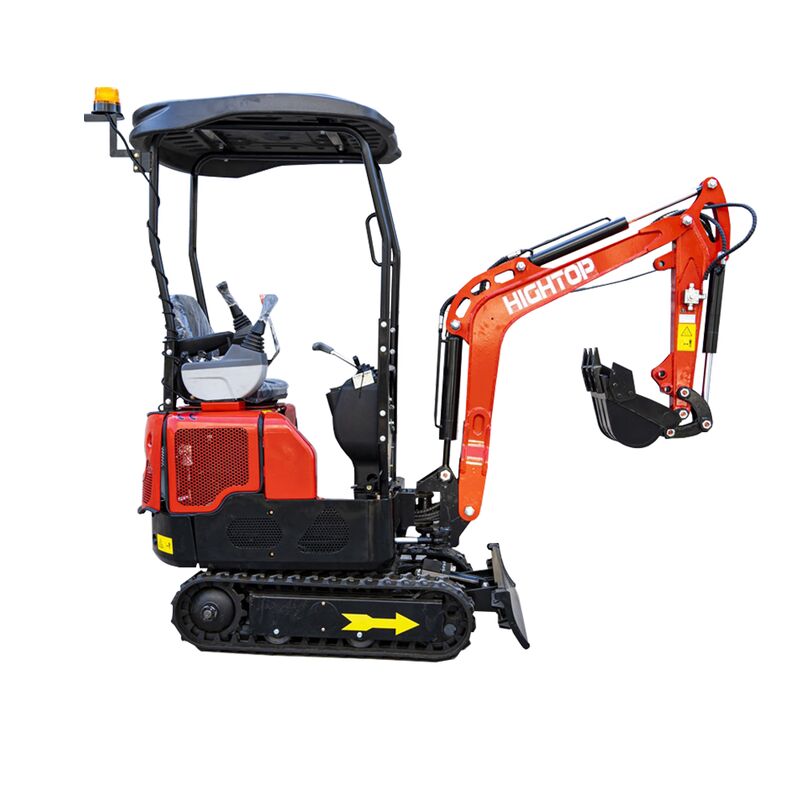

HT12G Mini Excavator

The HT12G Mini Excavator is engineered for exceptional performance in confined spaces, combining powerful performance with compact dimensions for versatile construction and excavation applications.

Key Features

Kubota Z482 Engine: Delivers reliable power output and stable operation across diverse working conditions
Full Hydraulic Pilot Control: Advanced control system ensures precise operation, faster response times, and enhanced work efficiency
Compact Design: Total width of only 930mm enables easy navigation in narrow spaces with exceptional maneuverability
Premium Construction: Complete surface treatment including shot blasting, pickling, phosphating, and spraying for superior paint adhesion, durability, and corrosion resistance

Technical Specifications

Model	HT12G	Maximum Excavation Height	2455mm
Engine	Z482 Kubota	Maximum Dumping Height	1620mm
Transportation Length	2380mm	Maximum Digging Depth	1850mm
Total Width	930mm	Maximum Excavation Distance	2920mm
Upper Width	940mm	Minimum Radius	1510mm
Total Height (Cab Roof)	2270mm	Maximum Height at Minimum Turning Radius	1930mm
Standard Track Shoe Width	180mm	Work Quality	900kg
Track Gauge	750mm	Bucket Capacity	0.02m³
Bulldozer Blade Height Above Ground	110mm	Form of Working Device	Backhoe
Bulldozer Shovel Push Excavation Depth	195mm	Gradeability	30 degrees
Tail Turning Radius	820mm
Track Grounding Length	890mm
Track Length	1235mm
