| Nguồn gốc | Trung Quốc |
| Hàng hiệu | Hightop |
| Chứng nhận | CE，EPA，ISO，TUV |
| Số mô hình | HT20U |

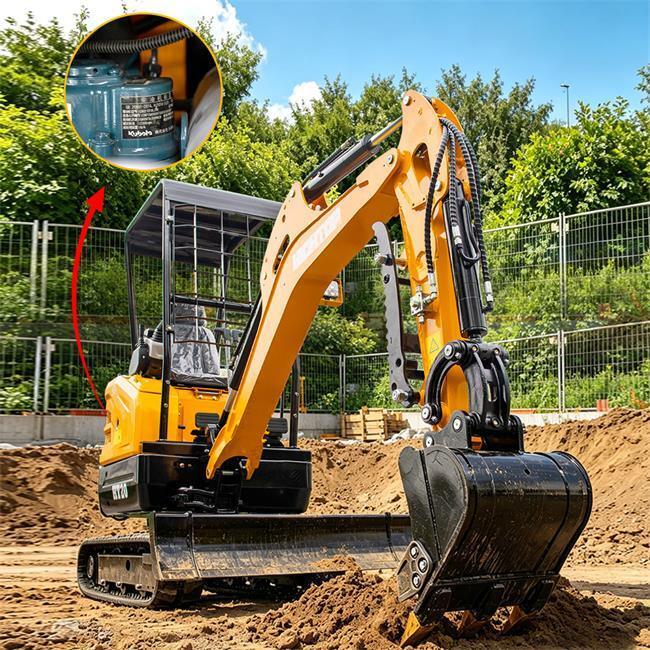

The HT-20U is a highly reliable 2-ton mini excavator designed for versatility and efficiency in small-scale construction projects. Featuring a zero-tail-swing structure, it performs excellently in confined spaces such as urban construction, garden landscaping, farm maintenance, and municipal engineering. Powered by a stable engine and matched with a precise hydraulic system, the machine delivers strong digging force, smooth operation, and low fuel consumption. With a retractable undercarriage, ergonomic controls, and wide compatibility with various attachments, it ensures easy operation, high flexibility, and multifunctional application. Sturdy in structure, durable in use, and cost-effective in performance, the HT-20U mini excavator is an ideal choice for construction contractors, rental companies, and agricultural users.
| Parameter | Value |
|---|---|
| Working weight (kg) | 1650 |
| Bucket capacity (m³) | 0.04 |
| Rated power | 11.8/2300 |
| Hill-climbing ability | 30° |
| Bucket digging force (kN) | 16 |
| Digging force at the boom tip (kN) | 9.5 |
| Soil pressure kPa | 30 |
| Rotational speed (r/min) | 9.5 |
| Dimension | Value |
|---|---|
| Overall length/Shipping length A | 3582 |
| Total width B | 1011/1320 |
| Upper width D | 998 |
| Overall height (roof/cab roof) C | 2498 |
| Standard track width F | 230 |
| Minimum ground clearance H | 150 |
| Turning radius at the rear I | 662 |
| Front and rear track width J | 1191 |
| Track length K | 1560 |
| Height of the dozer blade above the ground R | 250 |
| Bucket digging depth T | 235 |
| Parameter | Value |
|---|---|
| Maximum digging height a | 3276 |
| Maximum unloading height b | 2415 |
| Maximum digging depth c | 2042 |
| Maximum digging radius d | 3780 |
| Minimum turning radius e | 2080 |
| Maximum height f at the minimum turning radius | 2580 |
| Component | Specification |
|---|---|
| Engine | Kubota |
| Valve assembly | JX10-01 |
| Gear pump | TFA10VO28LADS-53R-VSC12N00-JNJT-01 |
| Travel motor | FTM01A-012006PV037HL01-03 |
