HT08 800 kg Mini Excavator with 360 Degrees Tailless Rotation

Nguồn gốc	Trung Quốc
Hàng hiệu	Hightop
Số mô hình	HT-08

Chi tiết sản phẩm

Tên sản phẩm:

Máy Xúc Mini HT08

Dung tích gầu:

0,025 M3

Mẫu động cơ:

kOOP 192

Cân nặng:

800kg

Max. Tối đa. Digging force Lực đào:

7.5KN

Dạng bơm:

Bơm bánh răng đơn

Đặt áp suất làm việc:

14MPa

Tốc độ di chuyển:

2,2km/giờ

Điều khoản thanh toán & vận chuyển

Số lượng đặt hàng tối thiểu

1 bộ

chi tiết đóng gói

Bao bì hộp gỗ

Thời gian giao hàng

5-8 ngày làm việc

Điều khoản thanh toán

L/C,D/A,D/P,T/T,Western Union

Mô tả sản phẩm

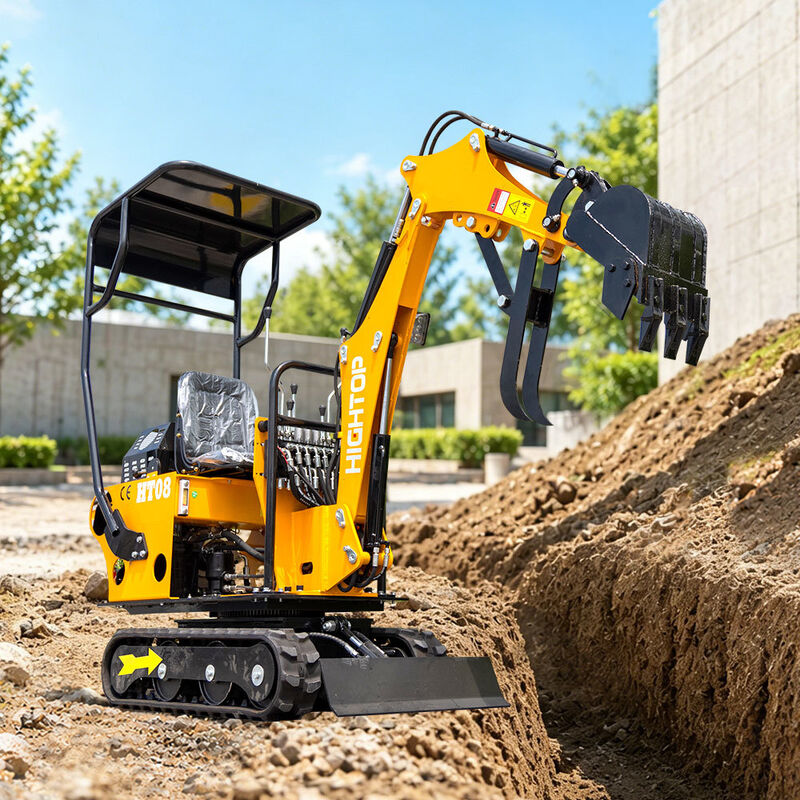

HT08 Mini Excavator

The HT08 800kg mini excavator offers compact design and exceptional flexibility with 360-degree tailless rotation. Engineered for stable performance and strong power with reduced fuel consumption, this multi-purpose machine saves time and labor while delivering long service life. Quick attachment changes enable versatile operation across various applications.

The 0.8-ton compact excavator features engines from internationally recognized brands including Changchai, Briggs & Stratton, and Koop. Compliant with European standards and US EPA environmental requirements, the HT08 carries CE, ISO, BV and other international certifications.

Performance specifications include maximum digging depth of 1300mm, maximum digging distance of 2450mm, and bucket capacity of 0.025 cubic meters.

Key Features

Unique large arm structure design for enhanced durability and reduced breakage risk
Clear front-end piping protected by durable covers (unlike exposed pipes on some competitor models)
Boom cylinder from reputable brands with integrated processing technology superior to welding
Precision-processed structural components with shot blasting, pickling, and painting for superior surface finish and paint adhesion
Pure cast iron hydraulic pump offering superior wear resistance compared to aluminum pumps at 3600 motor speed
High-quality German imported hydraulic pipes
Non-slip, wear-resistant tracks from established brands with guaranteed quality
Attractive machine design with customizable colors including yellow and black

Performance Parameters

Rated Power	7-7.5kw
Bucket Capacity	0.025 m³
Engine Model	Koop 192
Weight	800 kg
Max. Digging Force	7.5KN
Pump Form	Single Gear Pump
Set Working Pressure	14Mpa
Swing Speed	12 rpm
Travel Speed	2.2Km/h
Gradeability	30°
Ground Pressure	19Kpa

Working Range

Max. Digging Distance	2450mm
Max. Digging Depth	1200mm
Max. Digging Height	2350mm
Max. Dumping Height	1600mm
Min. Swing Radius	1100mm
Max. Upgrade Height of Bulldozer Blade	120mm
Max. Digging Depth of Bulldozer Blade	200mm
